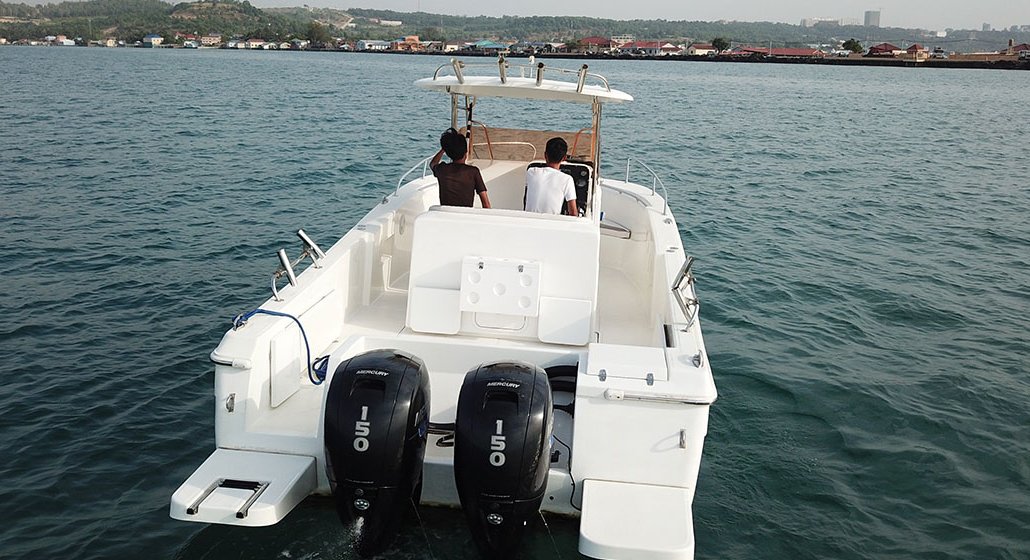

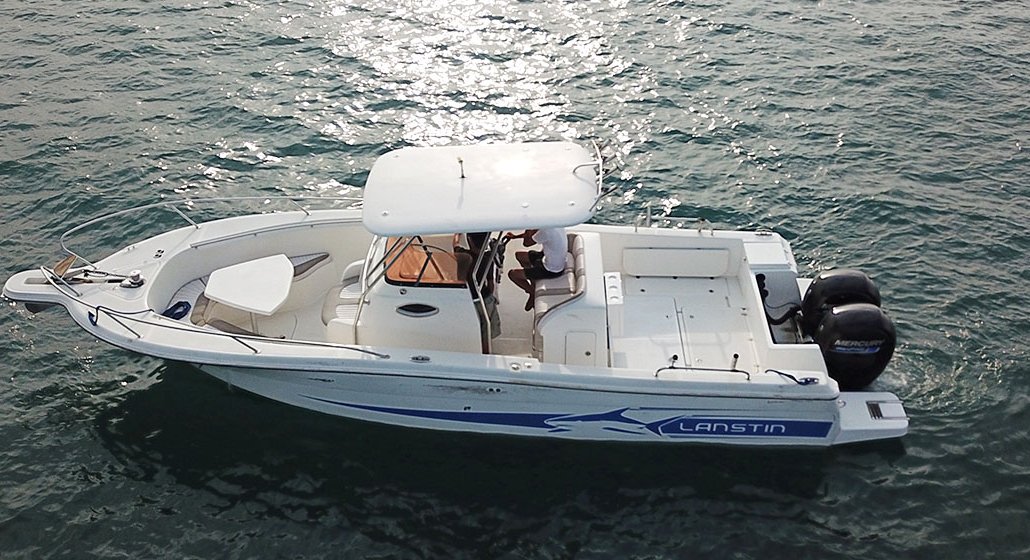

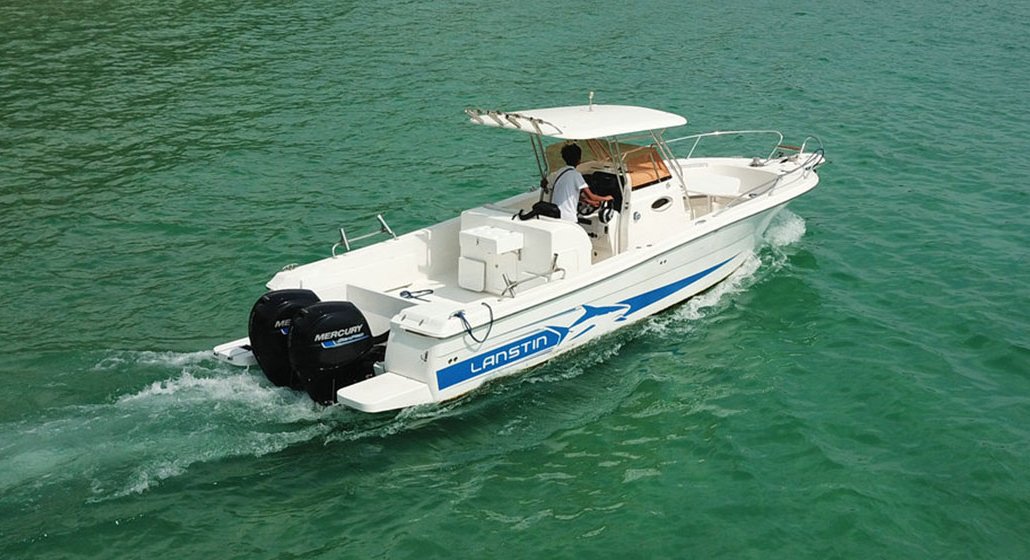

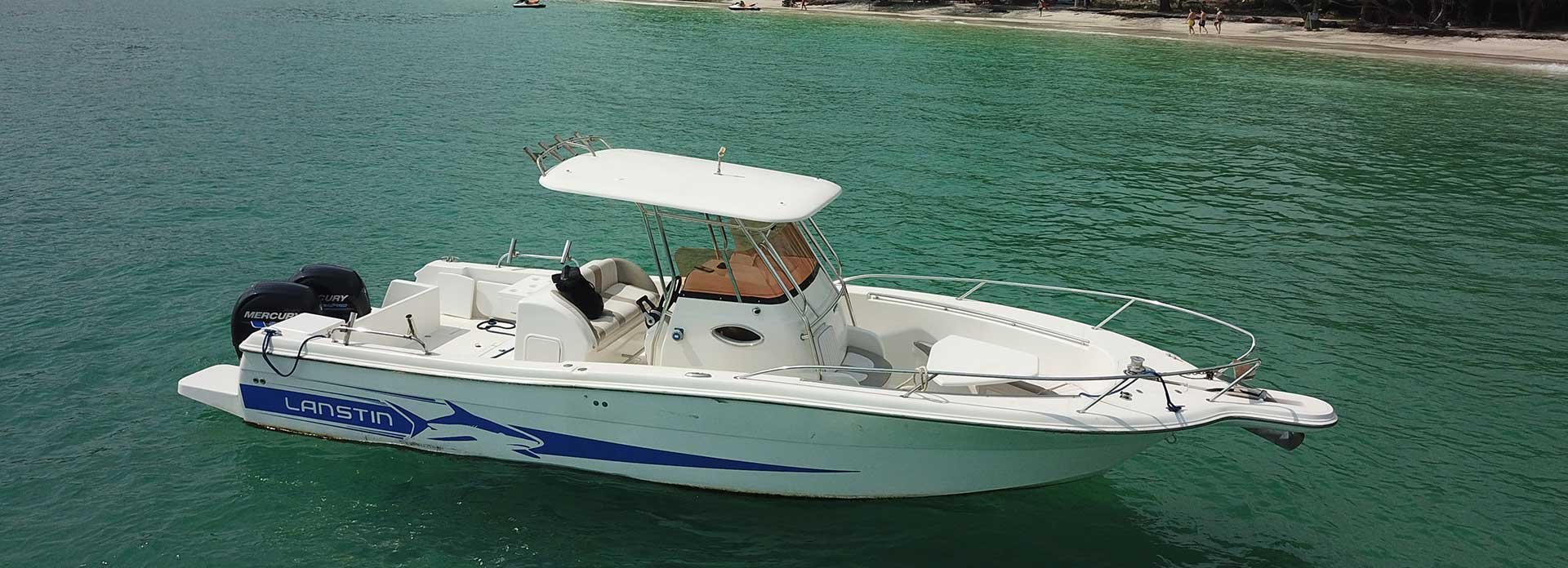

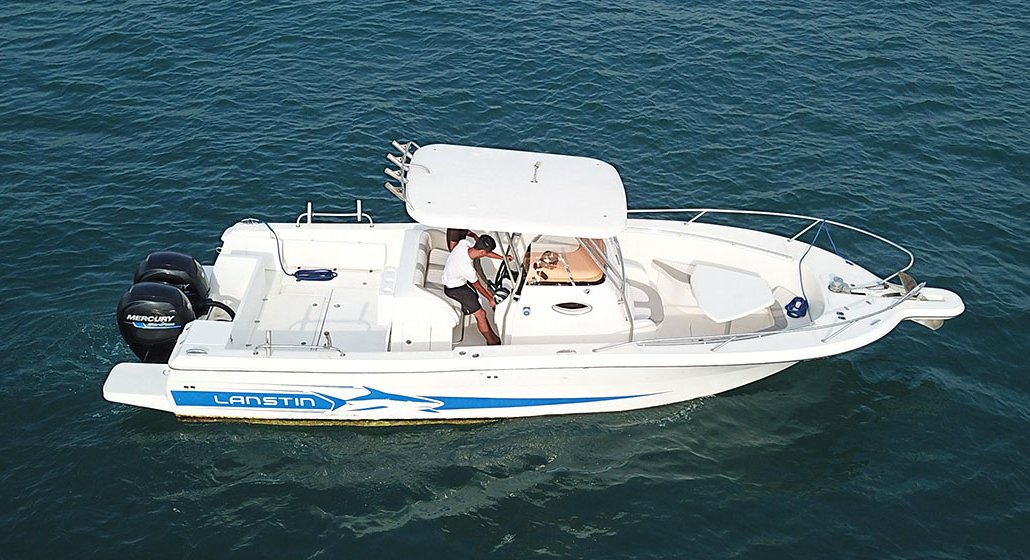

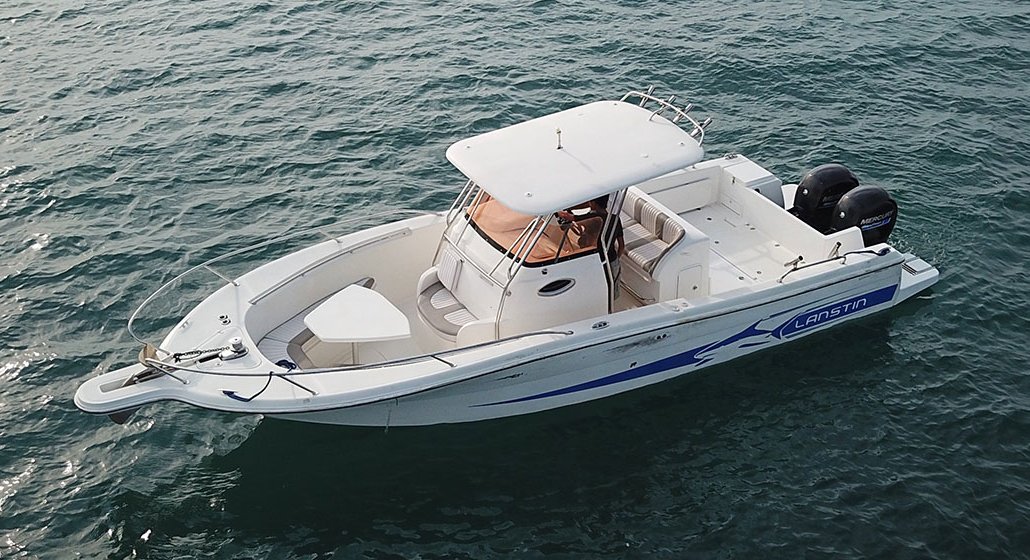

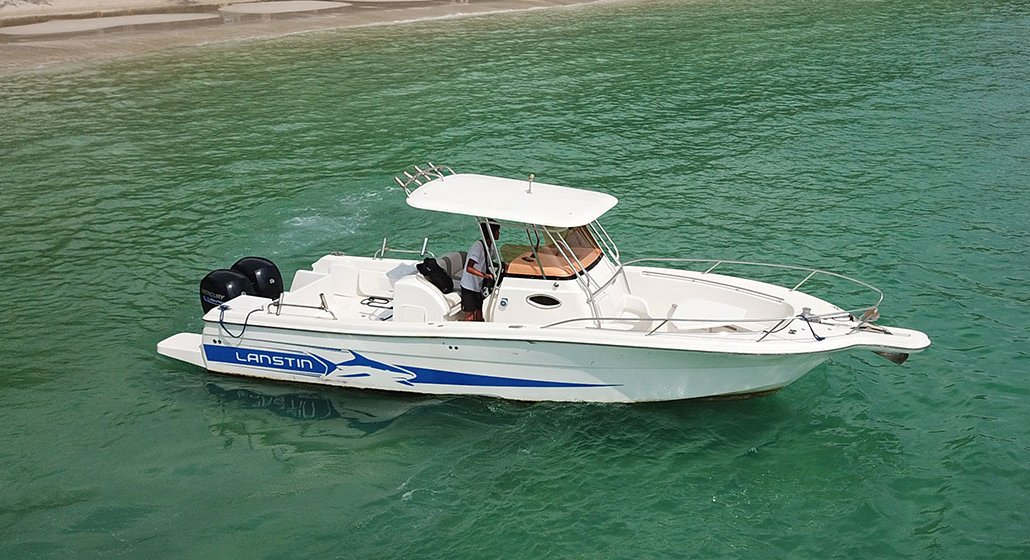

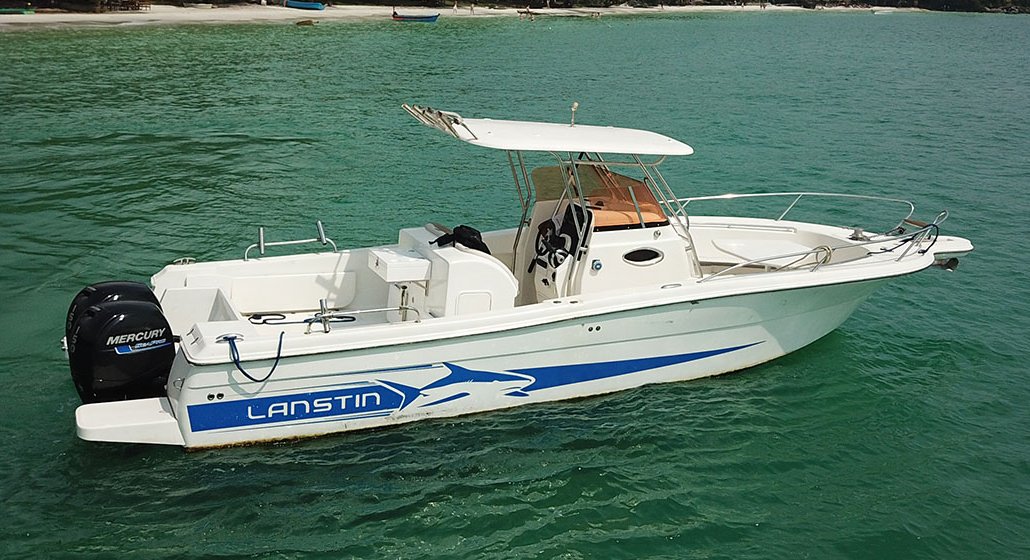

SY-30ms Master Sport Fishing Boat

  • Material: Fiberglass
    Overall length (with boarding deck): 9.06 m /29.7 ft
    Water line length: 7.012 m
    Beam: 2.95 m
    Depth: 1.41 m
    Draft: 0.50 m
    Full-load displacement: 3.7 t
    Dry weight: 3080 kg
    Capacity: 8 persons (incl.the driver)
    Max Speed: 30 knots
    Endurance: 10 hours
    Navigation area: B-OFFSHORE
    Engine & installation type: Outboards
    Recommended power: 300HP - 400HP

    a_0000_SY-30 03

    Material: Fiberglass
    Overall length (with boarding deck): 9.06 m /29.7 ft
    Water line length: 7.012 m
    Beam: 2.95 m
    Depth: 1.41 m
    Draft: 0.50 m
    Full-load displacement: 3.7 t
    Dry weight: 3080 kg
    Capacity: 8 persons (incl.the driver)
    Max Speed: 30 knots
    Endurance: 10 hours
    Navigation area: B-OFFSHORE
    Engine & installation type: Outboards
    Recommended power: 300HP - 400HP

  • Water line length:7.012 m
    Beam:2.95 m

    a_0001_DJI_0162

    Water line length:7.012 m
    Beam:2.95 m

  • Depth:1.41 m
    Draft:0.50 m

    a_0002_DJI_0148

    Depth:1.41 m
    Draft:0.50 m

  • Full-load displacement:3.7 t
    Dry weight:3080 kg

    a_0003_DJI_0092

    Full-load displacement:3.7 t
    Dry weight:3080 kg

  • Capacity:8 persons (incl.the driver)
    Max Speed:30 knots

    a_0004_DJI_0090

    Capacity:8 persons (incl.the driver)
    Max Speed:30 knots

  • Endurance:10 hours
    Navigation area:B-OFFSHORE
    Engine & installation type:Outboards
    Recommended power:300HP - 400HP

    a_0005_DJI_0087

    Endurance:10 hours
    Navigation area:B-OFFSHORE
    Engine & installation type:Outboards
    Recommended power:300HP - 400HP

  • Material：Fiberglass
    Overall length (with boarding deck)：9.06 m /29.7 ft
    Water line length:7.012 m
    Beam:2.95 m
    Depth:1.41 m
    Draft:0.50 m
    Full-load displacement:3.7 t
    Dry weight:3080 kg
    Capacity:8 persons (incl.the driver)
    Max Speed:30 knots
    Endurance:10 hours
    Navigation area:B-OFFSHORE
    Engine & installation type:Outboards
    Recommended power:300HP - 400HP

    a_0006_DJI_0084

    Material：Fiberglass
    Overall length (with boarding deck)：9.06 m /29.7 ft
    Water line length:7.012 m
    Beam:2.95 m
    Depth:1.41 m
    Draft:0.50 m
    Full-load displacement:3.7 t
    Dry weight:3080 kg
    Capacity:8 persons (incl.the driver)
    Max Speed:30 knots
    Endurance:10 hours
    Navigation area:B-OFFSHORE
    Engine & installation type:Outboards
    Recommended power:300HP - 400HP

    • Product Details

    Fittings ListEconomyStandardDeluxe
    DetailsQty
    Stainless steel folding cleat6 pcs●●●
    Stainless steel U-bolt3 pcs●●●
    Stainless steel guard rail (left & right)2 sets●●●
    Aluminum fuel tank500L●●●
    Stainless steel freshwater tank60L●●●
    Stainless steel wastewater tank60L●●●
    Stainless steel deck filler FUEL1 pc●●●
    Stainless steel deck filler WATER1 pc●●●
    Stainless steel thru-hull2 pcs●●●
    ABS plastic non-return thru-hull4 pcs●●●
    Stainless steel air vent2 pcs●●●
    Stainless steel deck hinges set1 set●●●
    Stainless steel built-in rod holder4 pcs●

    Stainless steel external adjustable rod holder4 pcs●●●
    3 positions rod holders combo1 set●

    Fiberglass deck folding chair (without EVA non-slip mat)2 pcs●●
    Fiberglass deck folding chair (with EVA non-slip mat)2 pcs●

    Stainless steel telescopic ladder (3 steps)1 pc●●●
    Electric Anchoring Set (Stainless steel windlass, 7KG galvanized delta anchor, 40m galvanized anchor chain)1 set●●●
    Magnet compass1 pc●●●
    Port and starboard lights1 set each●●●
    Masthead light (White all-around light)1 set●●●
    Day signal - Ball shape3 pcs●

    Day signal - Diamond shape1 pc●

    Day signal - Cylinder shape1 pc●

    Marine horn1 set●●●
    Lightning rod1 set●●●
    Live well1 pc●●
    Deck spray1 set●●
    Marine refrigerator1 set●

    Bilge pump2 sets●●●
    Steering console (Including steering wheel, gearbox, hydraulic control system - SeaStar or other same quality brand)1 set●●●
    Fuel level sensor + fuel gauge1 set●●●
    Marine switch panel1 set●●●
    Socket with USB ports1 pc●●●
    Icom VHF System1 set●●
    Garmin 3-in-1 multi-functional display screen (GPS, fish finder, nautical chart card)1 set●●
    Raymarine VHF System1 set●

    Raymarine 4-in-1 multi-functional display screen (Radar, GPS, fish finder, nautical chart card)1 set●

    Marine bluetooth speaker system1 set●●
    Marine battery and charging system1 set●●●
    Adjustable boat seat1 set●●●
    Cabin lounge (Marine toilet, cabin ceiling light, side portlights)1 set●●●
    Water tap and basin set(deck)1 set●●
    EVA Floor set (bow and stern deck + cabin, see Note 1 for optional designs)1 set●●
    Cup holder1 set●

    Bow deck lift table1 set●●●
    Stern deck foldable sunshade1 set●

    Dock lines4 pcs●

    Fender Set (4 boat fenders + 4 fender lines)1 set●

    Emergency sign1 set●●●
    National standard foam life jacket  8 pcs●

    EU standard inflatable life jacket8 pcs●

    Lifebuoy (with 18m rescue line)1 pc●

    2.3kg powder fire extinguisher3 units●●
    Fire bucket (with 10m rope)2 pcs●●
    UV proof boat cover1 pc●


    Optional fittingsEconomyStandardDeluxe
    DetailsQty
    Customized hull LOGO2 pcs〇〇〇
    Customized hull color1 set〇〇〇
    Teak wood floor1 set〇〇〇
    Restroom soft decoration in mini-cabin1 set〇〇〇
    Aluminum alloy boat trailer 1 unit〇〇〇
    Hot dipped galvanized boat trailer1 unit〇〇〇
    8 person life raft in valise pack1 pc〇〇〇
    Mercury 4-stroke 150HP outboard motor set (or Yamaha with same horse power outboards)2 sets〇〇〇
    Mercury 4-stroke 175HP outboard motor set (or Yamaha with same horse power outboards)2 sets〇〇〇
    Mercury 4-stroke 200HP outboard motor set (or Yamaha with same horse power outboards)2 sets〇〇〇
